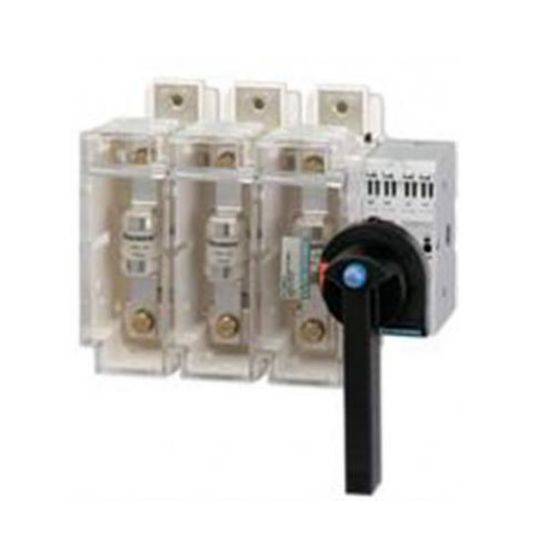

Socomec Switch-Fuse Standard Front Operated 3P 250A 132kW AC21 AC23 BS88 Type B1 B2 B3 IP30

$Socomec\Socomec_SSFBS2503P.jpg$

Description

Switch-Fuse Standard Front Operated, 400-690 Volt AC, 220-440 Volt DC, AC21 Rating: 250 Amp, AC23 Rating: 250 Amp, 132 kW @ 400 Volt, 220 kW @ 690 Volt, 3 Pole, 3 Phase, IP30, Base Mount, Rotary Switch, For Fuse Link Size: BS88 Type B1 B2 B3, 250 Amp, 95-240 mm Flexible Cable, Mechanical Durability: 10000 Cycles, 195 mm Height, 234 mm Width, 195 mm Depth, 70 deg C

Key Specifications

Barcode (EAN-13)	9321807197078
SKU	SOCSSFBS2503P
Brand	Socomec
Range Name	FUSERBLOC SSF BS88
Product Type	Switch-Fuses

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	90-degree rotatory open-close. supplied with handle and shaft for external operation Handles and switch fuse bodies both include a padlock facility to lock off the switch for lockout tagout (LOTO) insolation 100 kA fault rating Double breaking per pole (top and bottom) for isolated fuse removal Positive break indication Option: fuse monitoring device for remote blown fuse indication
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SSFBS2503P
AC21 Rating	250 Amp AC21
Depth	195 mm
For Fuse Link Size	BS88 Type B1 B2 B3
AC23 Rating	250 Amp
Fuse Rating	250 Amp
Height	195 mm
IP Rating	IP30
Mounting Method	Base Plate
Mechanical Durability	10000 Cycles
Number Of Poles	3 Pole
Phase	3 Phase
Temperature	70 deg C
Switch Type	Rotary
Terminal Capacity	95-240 mm Flexi Cable
Voltage	400-690 Volt AC/220-440 Volt DC
Wattage	132 kW @ 400 Volt/220 kW @ 690 Volt
Width	234 mm
