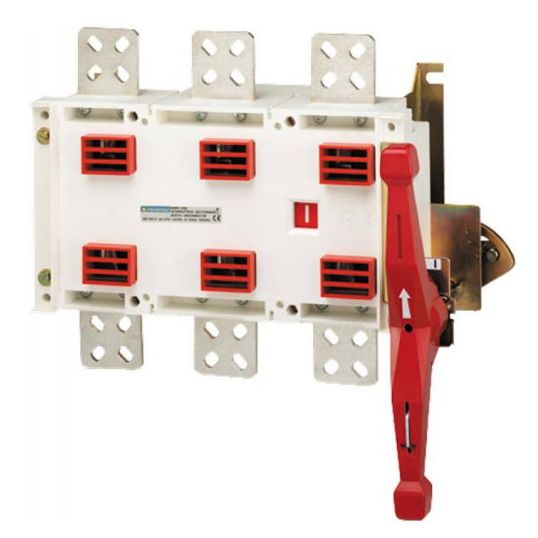

Socomec Load-Break Switch With Visible Contacts Front Operated 4P 1600A AC21 560 kW AC23 Surface Mount IP65

$Socomec\Socomec_VLB_SIDER.jpg$

Description

Load-Break Switch With Visible Contacts Front Operated, 400-690 Volt AC, 220-440 Volt DC, 1600 Amp, AC21 Rating: 1600 Amp, AC23 Rating: 1600 Amp @ 415 Volt, 560 kW @ 400/415/500 Volt, 4 Pole, Cable Size: 6-240 mm, Tightening Torque: 60 Nm, IP65, Surface Mount, 360 mm Height, 560 mm Width, 160 mm Depth

Key Specifications

Barcode (EAN-13)	9321807196910
SKU	SOCVLB16004P
Brand	Socomec
Range Name	SIDER
Product Type	Load-Break Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Double break per pole offers high durability and short-circuit withstand Use of glass fibre reinforced polyester provides high mechanical and thermal resistance (does not include SLBM or VLBM modular series) Quick and easy to install thanks to good centre to centre distance and connection accessories including copper connecting links Wide range of accessories available which is flexible in adapting to various applications and reduces the cost of management and storage All Socomec load break switches are compatible with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red / yellow colour
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	VLB16004P
AC23 Rating	1600 Amp 560 kW @ 415 Volt
Cable Size	6-240 sq-mm
Depth	160 mm
Current	1600 Amp
Height	360 mm
IP Rating	IP65
Number Of Poles	4 Pole
Tightening Torque	60 Nm
Voltage	400-690 Volt AC/220-440 Volt DC
Width	560 mm
