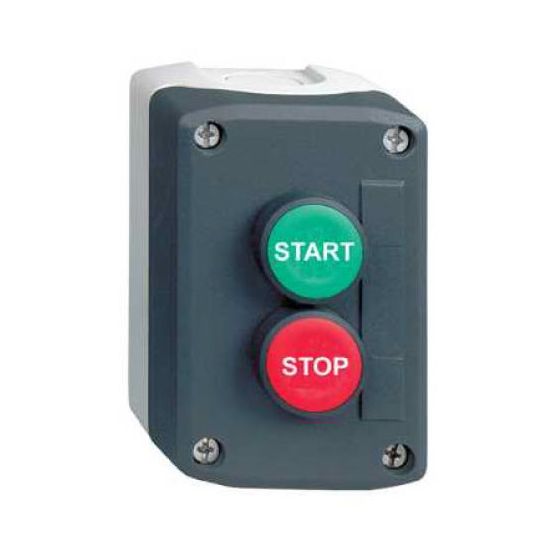

Schneider Pushbutton Control Station Complete 2G 1NO-1NC Polycarbonate Grey Cover Green & Red Operator Spring Return

Description

Pushbutton Control Station Complete, 10 Amp, 2 Modules Operator, 1 Normally Opened/1 Normally Closed Configuration, Slow Break Contact Mode, Spring Return Operator, START-STOP, White Legend, Flush Pushbutton Actuator, 22 mm Diameter Hub Size, Screw/Clamp Connection, IP66/67/69/69K, Polycarbonate Enclosure, Light Grey/Dark Grey/Green/Red, -25 to 70 deg C, 106 mm Height, 68 mm Width, 62 mm Depth

Key Specifications

Barcode (EAN-13)	3389110114287
SKU	TEEXAL-D215
Brand	Schneider
Range Name	XAL
Product Type	Control Stations

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	XALD215
Actuator	Flush Pushbutton
Colour	Light Grey/Dark Grey/Green/Red
Connection Type	Screw/Clamp
Contact Configuration	1 Normally Opened/1 Normally Closed
Contact Mode	Slow Break
Depth	62 mm
Enclosure Material	Polycarbonate
Interrupt Rating	10 Amp
IP Rating	IP66/67/69/69K
Legend	START-STOP
Height	106 mm
Hub Size	22 mm Diameter
Legend Colour	White
Number of Operators	2 Modules
Operator Type	Spring Return
Width	68 mm
Temperature	-25 to 70 deg C
