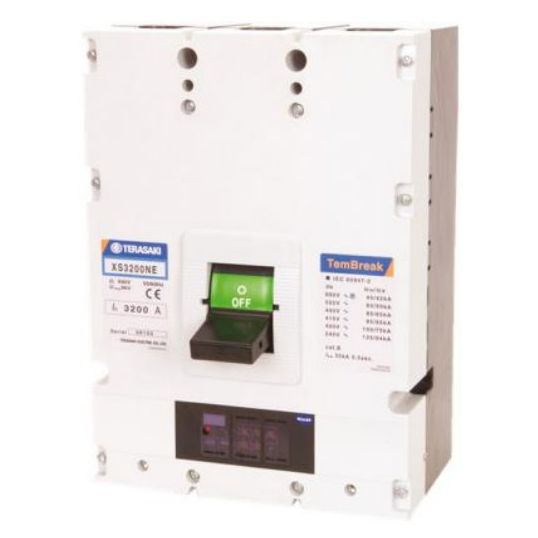

Terasaki Moulded Case Circuit Breaker Electronic 3 Pole 85 kA 2500 Amp
Loading...
Description
Moulded Case Circuit Breaker, 2500 Amp, Interrupt Capacity: 85 kA, Number of Poles: 3, Thermal Setting: 1250-2500 Amp Adjustable, 2500 AF Frame, Electronic Trip, Rear, 450mm Height x 320mm Width x 185mm Depth
Key Specifications
| Barcode (EAN-13) |
9321807048165
|
|---|---|
| SKU |
TERXS2500NE/2500
|
| Brand |
Terasaki
|
| Range Name |
TemBreak
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | XS2500NE25003RC |
| Frame Type | 2500 AF |
| Current | 2500 Amp |
| Depth | 185 mm |
| Height | 450 mm |
| Interrupt Capacity | 85 kA |
| Number Of Poles | 3 Pole |
| Mounting Method | Rear |
| Thermal Setting | 1250-2500 Amp Adjustable |
| Trip Type | Electronic |
| Width | 320 mm |
