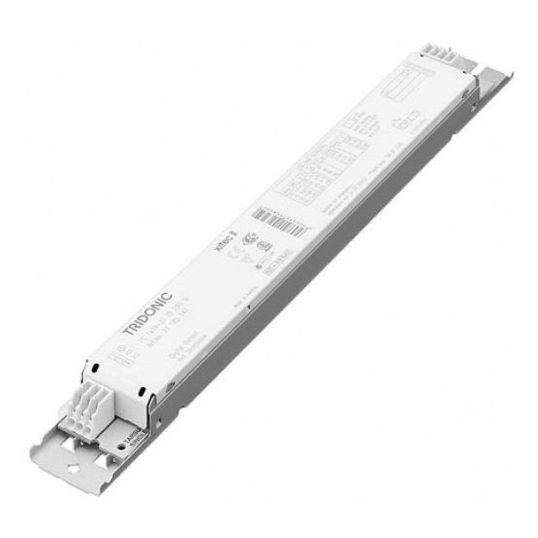

Tridonic Electronic Transformer 70.7W 220-240V IP20 280mm F/2x36 T8 PRO 2 Lamps Luminaries

Description

Electronic Transformer, Fluorescent, 220-240 Volt, 70.7 Watt, 50/60 Hz, Ballast Factor: 0.99/0.98, Dimmable. IP20, For Use With: 2x36 T8 PRO 2 Lamps Luminaries, -25 to 60 deg C, 28 mm Height, 30 mm Width, 280 mm Length

Key Specifications

Barcode (EAN-13)	9006210392882
SKU	THN22185217
Brand	Tridonic
Product Type	Lighting Spares

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Highest possible energy class CELMA EEI = A2 BAT Nominal life-time up to 100,000 hrs (at ta 50 deg C with a failure rate <=0.1% per 1,000 hrs) Large temperature range Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Precise lamp operation using adjustment of lamp parameters Advanced SMART-Heating for min. 50,000 starts without replacement of lamps Constant luminous flux irrespective of fluctuations in mains voltage Designed for THD <10 % For luminaries of protection class I and protection class II Automatic start after replacement of defective lamps
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	22185217
Ballast Factor	0.99/0.98
Dimmable	Dimmable
Frequency	50/60 Hz
For Use With	2x36 T8 PRO 2 Lamps Luminaries
Height	28mm
IP Rating	IP20
Lamp Type	Fluorescent
Temperature	-25 to 60 deg C
Voltage	220-240 Volt
Wattage	70.7 Watt
Width	30mm
