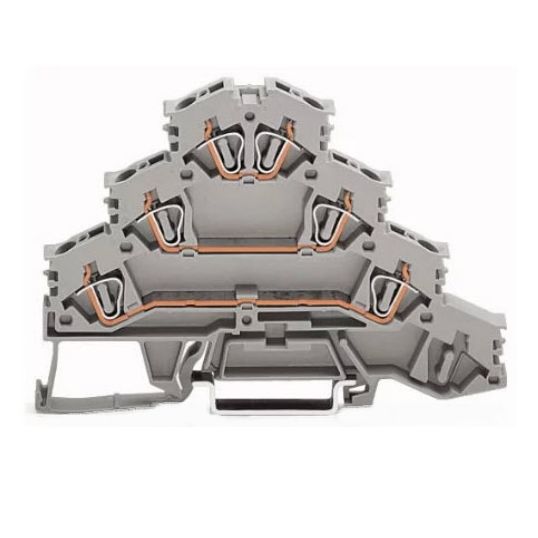

Wago Rail Terminal Block 4 Level 4mm Grey Polyamide 66

$Wago\Wago_281-532.jpg$

Description

Rail Terminal Block, 400 Volt, Rated Surge Voltage: 6 kV, 20 Amp Current, 25 Amp Current 2, 4mm Conductor, Wire Strip Length: 8 to 9 mm, Front Wire Entry, 6 Connection Points, 3 Potentials, 4 Levels, Marking Position: Centre/Side, Marking: (III / 3) ? Overvoltage category III / Pollution degree 3, Fire load: 0.359 MJ, Actuation Type: Operating Tool, DIN-35 Rail Mount, Conductor Material: Copper, Aluminium, Insulation Material: Polyamide 66, Grey, Height: 100 mm, 62.5 mm Width, 6 mm Depth

Key Specifications

Barcode (EAN-13)	4044918648776
SKU	WAG281-532
Brand	Wago
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For electric motor wiring
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	281-532
Actuation Type	Operating Tool
Conductor Material	Copper/Aluminium
Colour	Grey
Conductor Size	4.0mm
Current Rating	20 Amp
Depth	6 mm
Fire Load	0.359 MJ
Height	100 mm
Insulation Material	Polyamide 66
Marking	(III / 3) Overvoltage category III / Pollution degree 3
Marking Position	Centre/Side
Mounting Method	DIN Rail
Number of Connection Points	6
Number of Potentials	3
Number of Levels	4
Rated Surge Voltage	6 kV
Voltage Rating	400 Volt
Width	62.5 mm
Wire Entry Orientation	Front
Wire Strip Length	8-9 mm
